05-0407B Yamaha FZ07/MT07/XSR700 Rearset - Silver

FG icon
SKU: 05-0407B
$449.99
Type
This product fits your
Change
!
THIS PRODUCT DOES NOT FIT YOUR SELECTED BIKE.
Change
!
THIS PRODUCT IS BIKES SPECIFIC. Select a Bike to ensure fitment.
Select Your Bike
  • Description
  • Spare Parts
  • Q&A
  • Fitment

The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.

  • CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
  • 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
  • Our trick knurled footpegs give supreme feedback and the best traction available today.
  • Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
  • Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab

Kit Specific Details

Shift Pattern: This rearset can be used in either STD or GP shift.

Peg Movement:  Pegs can be moved up and back between .875 and 1.5 of an inch depending on position

Quickshifter: Push type quickhifter in STD shift- Pull type in GP shift.

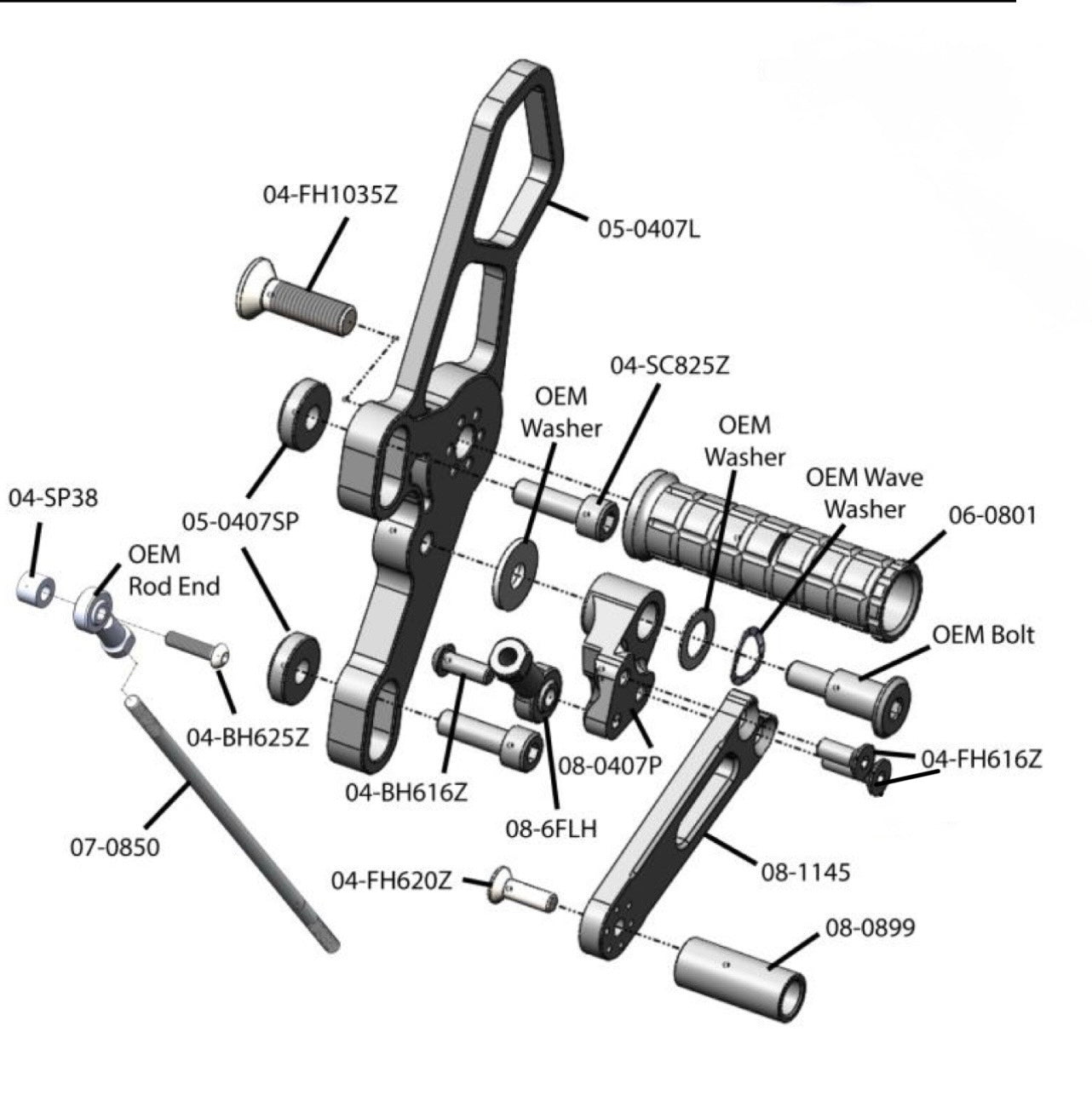

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets.  This kit utilizes some OEM components - see exploded drawings for details.

Note: Does NOT need the additional Woodcraft brake light switch - the OEM brake light switch may be utilized on this kit.



Brake Pedal Return Spring : 09-7125

Brake Pressure Switch : 03-0100

NO FOLDING TOE PIECES
1
BHSC M6x16Z 10.9(Hand Guards,05-0315B/316B)
1
BHSC M6.-1.0 X 25Z (Shift Pedals)
1
Flat Head M6-1.0 x 16mm Zinc (08-4131)
1
Flat Head M6x20 Zinc Screw
2
SHCSM8-1.25x25 Zinc Coarse Thread (05-0640,05-0600)
2
SHCSM8-1.25x25 Zinc Coarse Thread (05-0640,05-0600)
1
Spacer Alum Unthrd Rnd 1/2ODx3/8LGx1/4 Screw Sz
1
05-0407L YamahaFZ07 2015-17 MT07 2018-21 XSR700 2018-21 Left Adjustable Bracket, Silver
1
05-0407R Yamaha FZ07 2015-17 MT07 2018-21 XSR700 2018-21 Right Bracket, Silver
2
05-0407SP Yamaha FZ07 2015-17 MT07 2018-21 XSR700 2018-21 Bracket Mounting Spacers, Alum x 4
2
05-0407SP Yamaha FZ07 2015-17 MT07 2018-21 XSR700 2018-21 Bracket Mounting Spacers, Alum x 4
1
Rear Set Packaging Cost
1
06-01PE Optional Plug End Footpeg
1
06-01PE Optional Plug End Footpeg
1
08-0407P Shift Pedal Pivot, Yamaha FZ07 20105-17, MT07 2018-20, XSR700 2018-20
1
08-6FLH Rod end, 6mm FLH (K125,K128,08-0200,245,249,449,700)
1
09-0407P Brake Pedal Pivot, Yamaha FZ07 2015-17, MT07 2018-20, XSR700 2018-20
2
Small Decal Woodcraft/CFMotorsports
1
Yamaha FZ07 2015-18 R/S Instruction/Disclaimer
2
06-0801 Replacement Footpeg with Bolt
2
08-0899 Adjustable Pedal Tip W/ FH Bolt
1
07-0850 Male Stainless Steel Shift Rod, 8.5" Long
1
08-1145D 2 Hole Shift Shaft w/ Bolts
1
09-1145A 2 Hole Brake Shaft w/ Bolts
WITH FOLDING TOE PIECES
1
05-0407B Yamaha FZ07 2015-17 MT07 2018-21 XSR700 2018-22 Complete Rearset Kit w/ Pedals - STD/GP Shift
1
08-7099A Folding Toe Piece (Silver)
1
08-7899A Eccentric Folding Toe Peg Assembly Silver
