Buy Complete Rearset from our store for only $449.99
SKU: 63-05-0740B
  • Description
  • Spare Parts
  • Q&A
  • Fitment

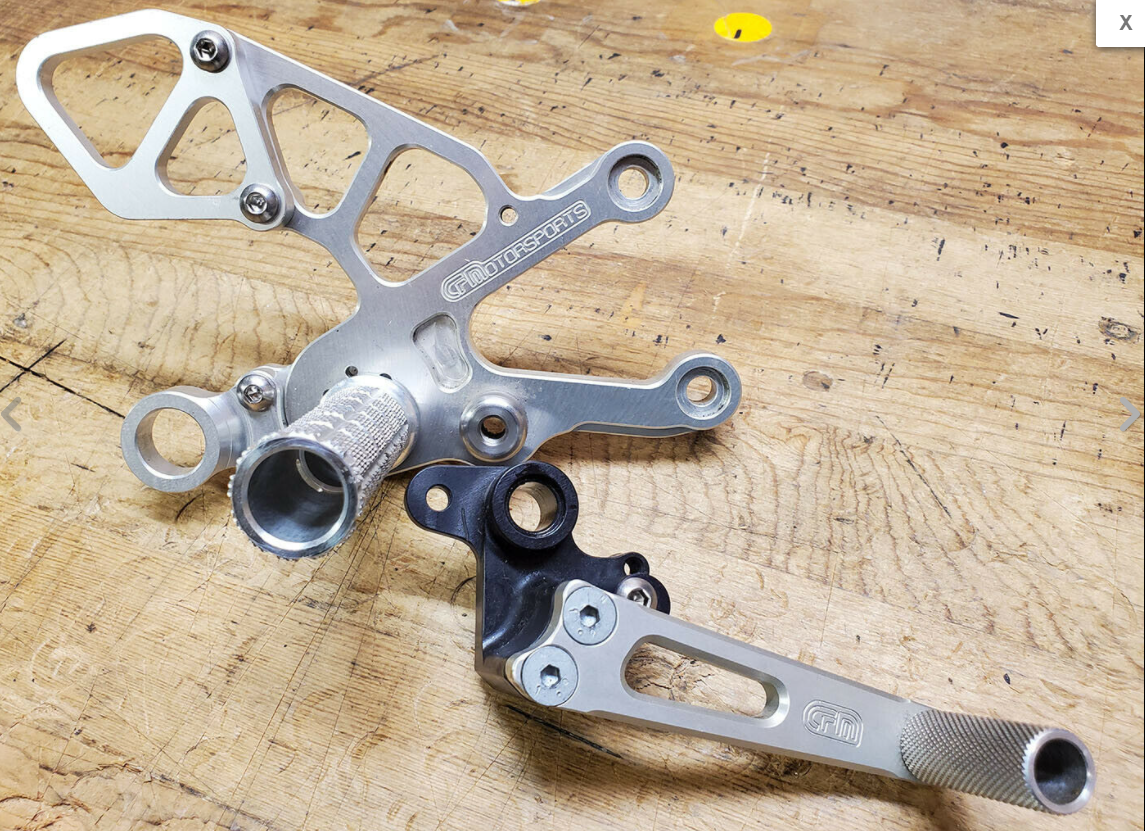

This set was mounted and used for a few rides until the rider determined they were not as comfortable on the street bike as he was hoping. These are best used on a track bike.

The foot controls are one of the most vital connections you have with your motorcycle. As a result, Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.

  • CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
  • 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
  • Our trick knurled footpegs give supreme feedback and the best traction available today.
  • Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
  • Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab

Kit Specific Details

Shift Pattern: This complete rearset can be used in either STD or GP shift. To use this kit in GP shift- use shift rod 07-0118.

Peg Movement: This kit has 6 possible peg locations moving the pegs in the following range: up 0.25"-0.75" & back 1/8"-5/8").

Quickshifter: Push Type in STD shift- Pull type in GP shift. Factory Quickshifter will work on 2011+ models.

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets.  This kit utilizes some OEM components - see exploded drawings for details.

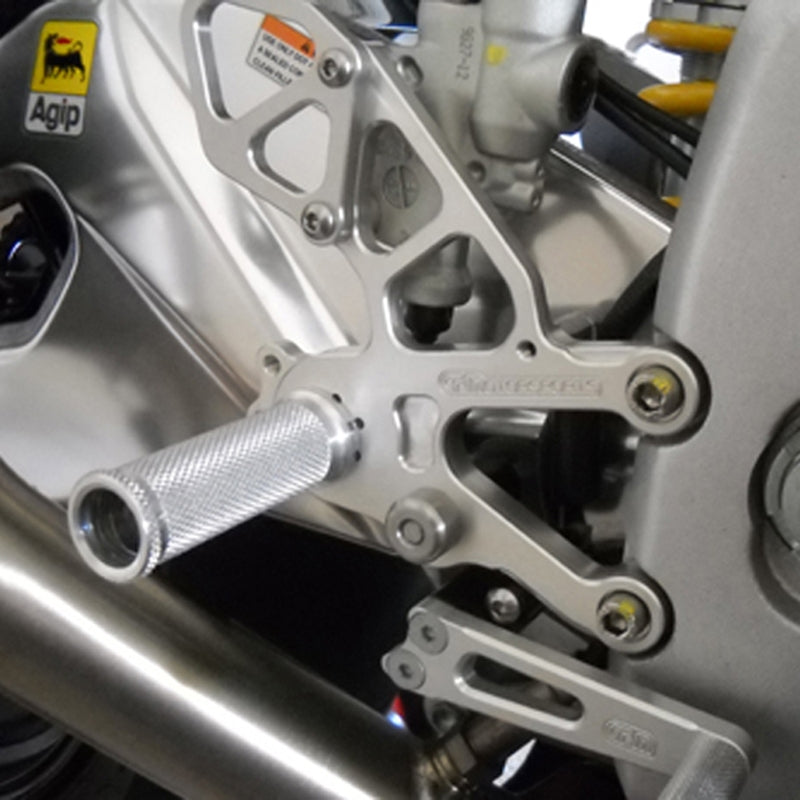

63-05-0740B MOUNTED
2
BHSC M6x16Z 10.9(Hand Guards,05-0315B/316B)
3
BHSC M6x30 Zinc Bolt
1
Button Head Socket Cap M8-1.25x35 Zinc coarse thread,(06-0700,08-0440,05-0720,05-0712S,05-0740S)
2
Flat Head M10-1.5x35 Zinc plated (Flat head footpeg bolt)
1
04-FN6LZ Nut Free-Flow 6mm LHS Zinc (shift rods) 04-FN6LZ
1
04-FN6RZ Nut Free-Flow 6mm RHS Zinc (shift rods) 04-FN6RZ
1
Peg Washer - 531 ID
1
05-0740HGB Heel Guard, Right Aprilia
1
05-0740L Aprilia RSV4/Tuono V4 Left Rearset Bracket
1
05-0740PM Pipe Mount - Aprilia RSV4/Tuono V4
1
05-0740R Aprilia RSV4/Tuono V4 Right Rearset Bracket
1
05-0740S Shift spacer sleeve, Aprilia RSV4, ZX10R ,Ninja 650R
1
05-0750OSP Offset Brake Pivot Spacer, BMW/Aprilia
1
05-K722 Aprilia RSV 2004-09, RSV4 2009-15, Tuono 1000R 2006-10 Knuckle Assembly (female W/bolts)
1
Rear Set Packaging Cost
2
06-01PE Optional Plug End Footpeg
2
06-0811 Short Replacement Footpeg with Bolt
1
07-0625 Male Stainless Steel Shift Rod, 6.25" Long
1
08-0740 Shift Pedal Assembly, Aprilia RSV4/Touno V4
1
09-0740 Brake Pedal Assembly, Aprilia RSV4, Tuono V4
1
Aprilia RSV/4 IN05-740 Disclaimer/Instructions
